Mitsubishi Ducted Air Handlers in Arcadia

Why choose a ducted Mitsubishi system for an Arcadia estate?

Plenty of homeowners want inverter efficiency without wall heads in every room. A ducted system using an SVZ-KP or MVZ-A air handler feeds ordinary supply registers, so the indoor equipment hides in an attic or closet and the living spaces stay clean. That is the natural fit for the larger Santa Anita Oaks and Upper Rancho rebuilds, where a visible MSZ head in the great room is a dealbreaker. The outdoor unit is still a quiet, modulating Mitsubishi inverter, so you keep the efficiency and low noise of ductless.

Which Mitsubishi ducted air handlers do you install?

The ducted M-Series and P-Series cover everything from one slim-duct wing to a full two-story rebuild. Here is the lineup and where each fits an Arcadia home:

• SVZ-KP (e.g. SVZ-KP24NA): a multi-position whole-home air handler paired to a Mitsubishi inverter outdoor unit. Mounts vertical or horizontal in an attic, closet, or mechanical room and feeds ordinary supply registers - the standard pick for a hidden, central-style system on an estate.
• MVZ-A (e.g. MVZ-A24AA7): the current multi-position air handler family, same hidden-register concept with updated controls and capacity steps for sizing to a Manual J load.
• SEZ-KD (e.g. SEZ-KD12NA4): a low-static slim concealed-duct unit that tucks above a dropped ceiling or in a closet for short runs over one wing or a converted attic. The right answer when you only need to condition part of the house.
• PEAD-AA (e.g. PEAD-AA24NL): the P-Series slim-duct handler for larger or higher-static runs; paired with a PUZ-AK..NLHZ outdoor unit it forms a newer single-zone ducted system that uses R-454B refrigerant.
• PVA-A (e.g. PVA-A24AA7 / A36AA7 / A42AA7): P-Series multi-position air handlers for the largest residential loads, where a single SVZ would run out of capacity.

SVZ, MVZ, or SEZ - which air handler fits?

SVZ and MVZ are the whole-home choices: multi-position units that mount in any orientation and carry enough airflow for a full house. SEZ-KD is the low-static slim-duct unit for short runs over a couple of rooms, ideal when you only need to condition a wing or a converted attic. We pick based on the room count, the static pressure of your ducts, and the available mechanical space.

What goes wrong on a ducted Mitsubishi system, and what is the fault code?

Ducted handlers fail in a few predictable ways, and the system tells you which through its green-LED blink pattern, the wired controller, or kumo cloud. The usual suspects are the ECM blower motor, the condensate drain and pump, the inter-unit communication wiring, and the inverter outdoor unit. We diagnose by code and airflow measurement, then repair the specific component.

The full pattern reference is in our fault-code finder.

What does installing a ducted handler take in an Arcadia home?

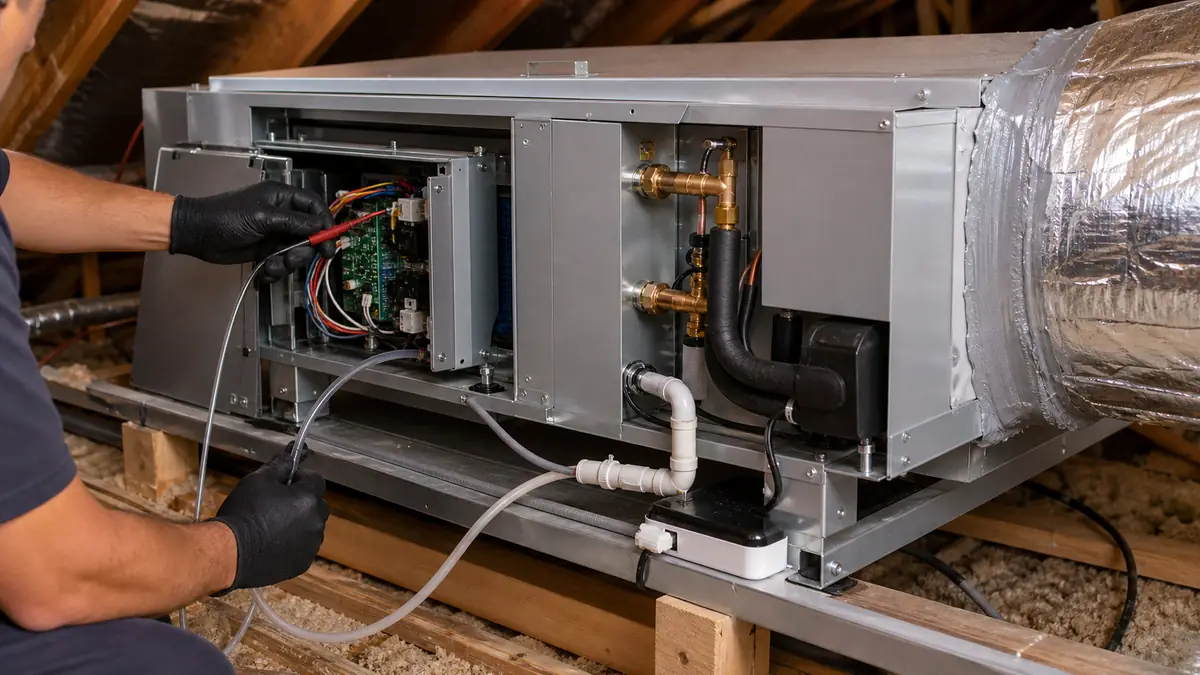

Two things decide the install: where the handler lives and whether the ducts can carry the airflow. SVZ and MVZ units are multi-position, so they drop into an attic, a hall closet, or a garage mechanical space, but each needs service clearance and a condensate path - a pump if it sits below the drain line. The bigger question is the ductwork. On a mid-century ranch in Lower Rancho, the original ducts are usually leaky and undersized for the new airflow, so we put a manometer on the system, measure external static pressure, and either reseal and resize the runs or recommend a ductless plan instead. Whenever we alter or replace ducts in Climate Zone 9, Title-24 brings HERS field-verified duct sealing, and a new split system adds refrigerant-charge and airflow verification, so we book the third-party rater and pull the City of Arcadia mechanical permit as part of the job. The full duct picture is in our duct repair and sealing page.

Ducted handler vs ductless heads - which suits your home?

This is the real decision on an Arcadia rebuild, and it is a tradeoff, not a winner. A ducted SVZ or MVZ hides every piece of indoor equipment and gives you the clean look of a central system, which is why estate owners in Santa Anita Oaks and Upper Rancho choose it - but it depends on sound, properly sized ductwork and runs a touch less efficient than a one-room head because of duct losses. Ductless MSZ wall heads or MFZ floor consoles skip the ducts entirely, cost less per zone, and squeeze out the highest SEER2 numbers, but they put visible units in each room. A practical split: go ducted for the main living areas of a large home that already needs duct chases, and consider a head for an addition or a converted space where running duct is not worth it.

Is a ducted Mitsubishi system right for your home?

Use this quick decision aid. A ducted SVZ/MVZ makes sense if: you want no visible indoor units, you have or can build sound ductwork, and you have attic or closet space for the handler. Lean ductless instead if: your home has no usable duct routing, you are conditioning just one or two rooms, or you want the absolute lowest install cost and highest efficiency per zone. Pick the P-Series PEAD or PVA path if the load is large enough that a single SVZ runs out of capacity or static pressure. We confirm the call with a Manual J load number and a static-pressure reading, then design the zones - see our heat pump installation page for how the whole system comes together.
