Mitsubishi Heat Pump Installation in Arcadia

What Mitsubishi heat pump fits an Arcadia home?

It depends on whether you are adding to an existing house or building new. For a single room, addition, or converted Peacock Village garage, a single-zone MSZ wall head on a MUZ condenser is clean and efficient - an MSZ-FS pairs to MUZ-FS for up to roughly 30.5 SEER2. For a whole rebuild, an MXZ-SM SMART MULTI condenser ties several heads together, and SVZ or MVZ air handlers give you a fully ducted system with hidden registers.

The teardown-and-rebuild culture on the larger Upper Rancho and Santa Anita Oaks lots is exactly why we lead with design. A 4,000 sq ft custom home with two stories and a lot of west glass is not a one-condenser job; it is a zoned plan staged with your framer before drywall.

Which Mitsubishi model families do you install in Arcadia?

The right line depends on the room, the look you want, and whether you are dropping gas. These are the families we spec most for Arcadia homes:

• MSZ wall heads + MUZ condensers (single-zone): the workhorse for one room or an addition. An MSZ-WR09NA on a MUZ-WR is the value tier; an MSZ-FS09NA paired to a MUZ-FS reaches up to roughly 30.5 SEER2 and adds the 3D i-see occupancy sensor; the newest MSZ-FX on an H2i-plus MUZ-FX..NLHZ tops out near 35 SEER2 in small sizes.

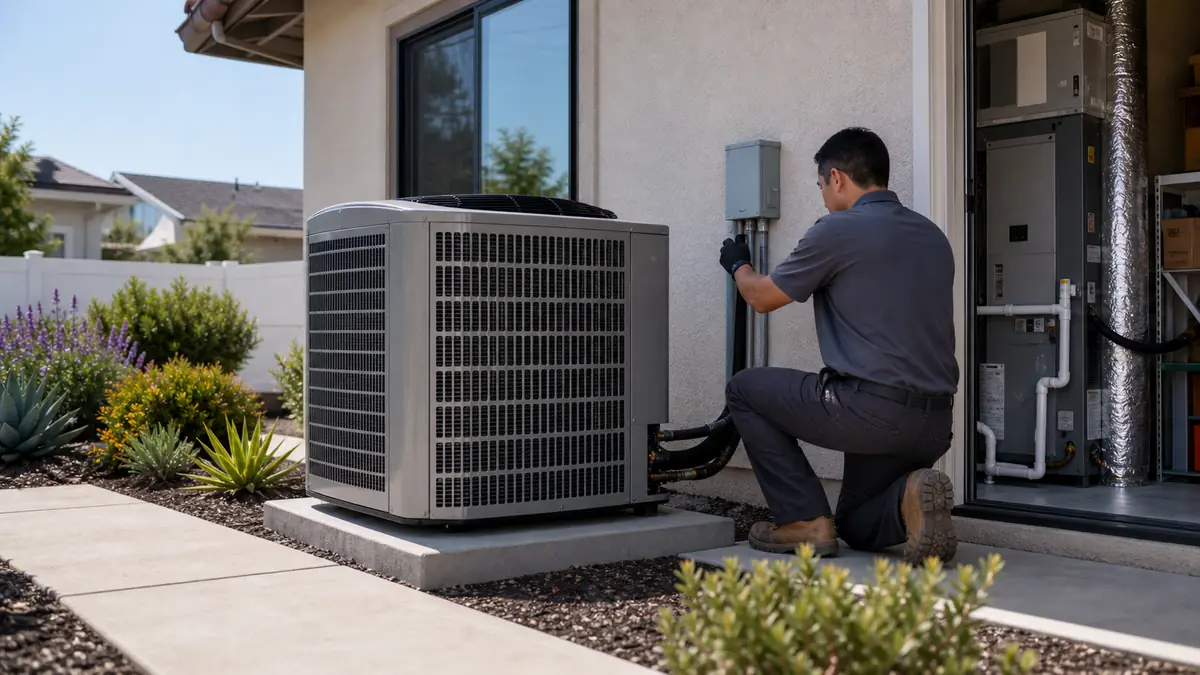

• MXZ-SM SMART MULTI (multi-zone): one outdoor unit, two to eight heads. An MXZ-SM36NAMHZ, SM42NAMHZ, or SM48NAMHZ ties MSZ wall heads, MFZ floor consoles, and MLZ cassettes onto a single refrigerant circuit - the heart of a whole-home ductless plan that keeps one condenser on the side yard.
• SVZ / MVZ ducted air handlers: SVZ-KP and MVZ-A multi-position handlers feed ordinary supply registers for hidden, central-style comfort on the larger estates, with no wall heads in the great room.
• MFZ-KJ floor consoles: low units (MFZ-KJ09NA / KJ12NA / KJ18NA) that fit under the picture windows common in mid-century ranch living rooms and replace old baseboard heat.
• P-Series PUZ / PEAD / PVA: higher-capacity ducted or ductless for the largest rebuilds; newer single-zone ducted P-Series (PUZ-AK..NLHZ + PEAD-AA..NL) uses R-454B refrigerant, which we note on the work order for future service.

Why does sizing matter more than tonnage charts?

The mistake we see most on Arcadia installs is reaching for too much capacity. An oversized system hits the thermostat number quickly, then cuts out before it has drawn down the humidity or balanced the back rooms, and that short-cycling wears on the compressor while the comfort complaints pile up. So we run a Manual J against your actual envelope, glass, and orientation, then choose the smallest equipment that can still hold setpoint through a 100 F Santa Ana afternoon. Inverter Mitsubishi units modulate, which means a rightly sized system spends most of the year simply ramping down.

What does Title-24 require on a new install?

New and altered HVAC in Zone 9 answers to California Title-24, Part 6. For a new or replacement split system that means refrigerant-charge and airflow verification, and the moment you touch ductwork it adds HERS field-verified duct sealing. The code is steering firmly toward heat-pump-ready and heat-pump-preferred baselines, and that runs in your favor on a Mitsubishi install. We line up the permit and the third-party HERS rater so the system clears inspection on the first pass. The particulars live in our sizing guide and SEER2 and rebates guide.

What does a heat pump install cost in Arcadia, and why?

A single-zone MSZ/MUZ install runs $3,500 to $8,000 in 2026 SoCal, climbing with a Hyper-Heat condenser or a long line-set run around a foothill lot. A three-to-four-head MXZ-SM multi-zone lands $9,000 to $20,000, driven mostly by the head count and the refrigerant piping to each room. A ducted SVZ/MVZ system is $6,000 to $16,000, and if the existing ducts need sealing or resizing to pass HERS, add a $1,900 to $6,000 ductwork line. The cost drivers that matter here are head count, line-set length on the bigger lots, whether ductwork is touched (which triggers HERS), and the permit and verification fees. On the federal credit, do not count it: the 25C heat-pump tax credit expired December 31, 2025, so a 2026 install carries no federal credit. California utility programs through LADWP, SCE, and SoCalGas may still help, but their amounts and funding shift, so we confirm the live program before quoting against any rebate. The full picture is in our SEER2 and rebates guide.

What happens during the install?

1. Manual J load calculation and equipment selection, with line-set routing planned around the foothill lot and the side-yard condenser location.
2. City of Arcadia mechanical permit pulled; rough-in coordinated with your framer before drywall if it is new construction.
3. Mount the indoor heads or air handler and the outdoor unit, run and insulate the line set, and land the S1/S2/S3 inter-unit wiring.
4. Pull a deep vacuum (target around 500 microns), hold it to confirm no leak, then release the factory charge and top off to the line-length spec.
5. Set up kumo cloud or MHK2 controls, commission each zone, schedule the third-party HERS verification for charge, airflow, and any duct sealing, and register the warranty.

What is different about installing in Arcadia?

The split in the housing stock drives everything. On the teardown rebuilds across Santa Anita Oaks and Upper Rancho - large two-story custom homes with heavy west and south glass - the cooling load is real and the right answer is a zoned MXZ-SM or a ducted SVZ/MVZ plan staged before drywall, not one oversized condenser. On the remaining mid-century ranch homes in Lower Rancho and Peacock Village, the move is usually a ductless retrofit or a floor-console swap that avoids tearing into plaster. Three local constraints recur: foothill lots that lengthen line sets and need careful condenser placement, the City of Arcadia mechanical permit plus Title-24 HERS verification on any duct work, and a Zone 9 cooling load that rewards right-sizing because an oversized inverter short-cycles and never dehumidifies the back rooms. We size to the smallest unit that holds setpoint through a 100 F Santa Ana afternoon.
