Mitsubishi Mini-Split Leaking Water in Arcadia
The gist: A Mitsubishi mini-split dripping water in Arcadia is almost always a clogged condensate drain or failed pump, not a refrigerant leak, and it usually throws a P4 or P5 code in the $150 to $450 repair lane. Turn the head off, then call Arcadia Mitsubishi HVAC at (213) 772-2088 or book online across 91006.
The cheat sheet
- Most common cause: clogged condensate drain or failed drain pump
- Often flags P4 (drain float) or P5 (drain pump / high condensate)
- Clear water inside is condensate, not refrigerant
- Drain clear or pump replacement typically $150 to $450 in 2026 SoCal
- Foothill dust and long cooling season clog drains faster
- Yearly pre-summer drain flush prevents repeat drips
- Open 6:30am-8pm weekdays, 8am-5pm weekends; ZIPs 91006, 91007, 91066, 91077
Why is my mini-split dripping water?
A cooling indoor coil condenses humidity out of the air, and that water collects in a drain pan and leaves through a drain line or a small pump. When the line clogs with the dust and biofilm that build up over an Arcadia cooling season, or the pump fails, the water has nowhere to go and overflows the pan - dripping from the bottom of the wall head. The unit usually senses the high level and throws a P4 (drain float) or P5 (drain pump abnormal) code, then stops cooling to protect itself.
| Symptom | Likely cause / first check | Cost lane |
|---|---|---|
| Drip from wall head, P4/P5 code | Clogged condensate drain or pan | $150 - $350 |
| No drip but unit stops, P5 | Failed drain pump | $250 - $450 |
| Water plus ice melting off coil | Frozen coil from low airflow / low charge | $120 - $1,500 |
| Stain on ceiling below attic unit | Ducted handler pan or pump (SVZ/MVZ) | $200 - $700 |
What should I do right now?
Stop the drip and protect the room. Turn the affected head off at the remote so it stops condensing water, put a towel or shallow pan under it, and wipe down any wall or floor the water touched to avoid staining. Do not keep running it - the P4 or P5 code means the unit already wants to stop. Then book a visit; this is one of the more affordable Mitsubishi repairs once we clear the drain or swap the pump.
How does a tech diagnose the leak step by step?

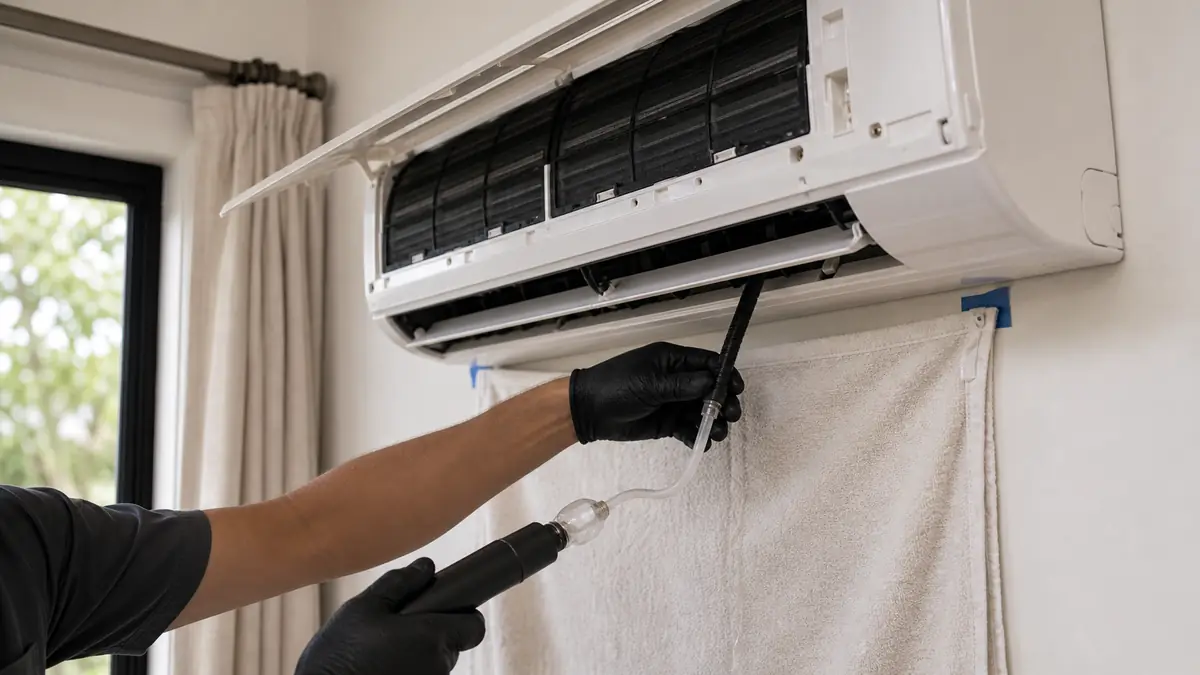

There is a fixed order to it, and watching it lets you tell a real diagnosis from a guess. First we read the fault: a P4 points at the drain float or sensor circuit, a P5 at the drain pump itself or a high-condensate level. Then we open the head and look at the drain pan - standing water with the pump running means the discharge side is blocked, while a dry pump that will not energize is electrical. We blow out or vacuum the condensate line from the termination, since the clog is usually biofilm and dust packed in the trap or the line's lowest point. If the pump is the culprit, we bench-test it for flow before condemning it. Finally we pour water into the pan and confirm it clears fully and the P-code stays gone, rather than handing you a unit that drips again next week.
| Finding | What it means | The fix |
|---|---|---|
| P4, water in pan, pump runs | Drain line or trap clogged downstream | Clear/flush the condensate line |
| P5, pump silent | Failed drain pump or its circuit | Replace the condensate pump |
| Pan dry, head still drips | Cracked pan or misaligned line set wrap | Reseal pan / line-set penetration |
| Ice on coil then water | Frozen coil from low airflow or charge | Filter, airflow, or refrigerant check |
What can I safely check, and what needs a pro?
Two things are safe to do yourself, and one line you should not cross. Safely: turn the head off to stop the drip and protect the room, and wash or swap the indoor filter, since a choked filter is a frequent reason the coil over-condenses. The pro side starts at the drain line and pump - clearing a packed condensate trap, bench-testing or replacing a drain pump, and resealing a pan all need access, a wet-vac or nitrogen, and a meter. Do not pour bleach or random drain cleaner into a mini-split line; it can corrode the pan and pump. If the unit also shows ice on the coil or a U-code, that crosses into refrigerant territory and needs gauges, not a household fix.
Is it water or is it refrigerant?
Worth knowing, because the fix is completely different. Clear water dripping inside is condensate - a drain problem. A refrigerant leak does not usually drip visible liquid into the room; it shows as weak cooling, frost on the coil, and U7 or P8 codes. If you see ice forming on the indoor coil and then melting and pooling, that is a frozen-coil symptom from restricted airflow or low charge, covered on the fault-code page. When in doubt we put gauges on it to be sure.
How do I keep it from happening again?
Clean the washable filter regularly so less dust reaches the coil and drain, and have the condensate line and pan flushed during annual service - ideally before the summer load starts. Arcadia's foothill dust and long cooling season clog drains faster than milder coastal areas, so a yearly pre-season flush is cheap insurance. The maintenance calendar sets the timing.
Common questions about a leaking mini-split
Why is water dripping from my Mitsubishi wall head?
Almost always a condensate problem. The indoor coil pulls humidity out of the air into a drain pan, and if the drain line clogs or the pump fails, the water backs up and drips from the head. In Arcadia we see this most in late summer when humidity and dust combine to slime up the drain. It often throws a P4 or P5 code.
Is a leaking mini-split an emergency?
Not dangerous, but do not ignore it. The unit usually protects itself by stopping cooling (P4/P5), and dripping water can stain drywall or flooring. Turn the head off to stop the drip, place a towel, and book a service visit. It is typically an affordable drain clear or pump replacement, not a major repair.
Could the leak be refrigerant instead of water?
Refrigerant leaks do not usually drip visible liquid inside; they show as weak cooling, ice on the coil, and codes like U7 or P8. Clear water under a head is condensate. If you see ice melting off the coil and pooling, that is a frozen-coil symptom from low airflow or low charge, which is a different fix.
How do I prevent the drain from clogging again?
Keep the filter clean so less dust reaches the coil and drain, and have the condensate line and pan cleared during annual service. Foothill dust and the long Arcadia cooling season load the drain faster than in milder areas, so a yearly flush before summer is cheap insurance against a repeat drip.
